Executive Summary
A 30x40 site covers 1,200 square feet of plot area, making it one of the most common residential plot sizes in Bangalore and across Karnataka. A well-designed 30x40 house plan can comfortably fit a 2BHK ground floor with parking, or a full 3BHK G+1 (ground + first floor) home with up to 2,400 sq ft of built-up area.
It is the benchmark plot size for BDA layouts across Whitefield, JP Nagar, Jayanagar, Yelahanka, and Kengeri — and the starting point for most urban family homes in South India. Whether you need single-floor living for senior citizens, a duplex for rental income, or a multi-floor family home, the 30x40 site handles all of it efficiently.
At PlanMyPlot, our registered Council of Architecture (CoA) architects have designed 30x40 homes for 150+ clients across Bangalore, Shivamogga, and beyond. Every design is Vastu-compliant, BBMP/BDA-ready, and delivered within 7 days.
Key Specifications
Section 01
What Can You Build on a 30x40 Site?
The 30x40 plot (1,200 sq ft) is versatile enough for single-floor living, multi-storey family homes, or high-yield rental duplexes. Here is what each configuration yields:
| Configuration | Floors | Bedrooms | Built-Up Area | Best For |
|---|---|---|---|---|
| 2BHK Ground Floor | G | 2 | ~900 sq ft | Senior citizens, couples |
| 3BHK Ground Floor | G | 3 | ~1,050 sq ft | Single-floor family home |
| 3BHK + Parking | G | 3 | ~1,100 sq ft | Families with one car |
| G+1 Duplex (4BHK) | G+1 | 4 | ~2,200 sq ft | Families, rental income |
| G+2 Triplex | G+2 | 6 | ~3,000 sq ft | Investment property |
Section 02
Popular 30x40 House Plan Layouts
30x40 2BHK Ground Floor Plan
The 2BHK ground floor plan is the most budget-efficient configuration for a 30x40 site. With approximately 900 sq ft of built-up area, this layout accommodates two bedrooms (master: 12×12 ft, second: 10×10 ft), two attached bathrooms, a combined living and dining area, a modular kitchen, and covered parking for one car along the front setback.
This layout is ideal for senior citizens who prefer single-floor living, couples starting out, or families using the plot as a secondary residence. BBMP mandates a front setback of 1.5–3 metres depending on road width — car parking is typically tucked into this setback zone without eating into the living area. On a north or east-facing 30x40 site, the 2BHK layout works excellently — the master bedroom sits in the southwest, kitchen in the southeast, and a northeast corner is preserved for a pooja niche.

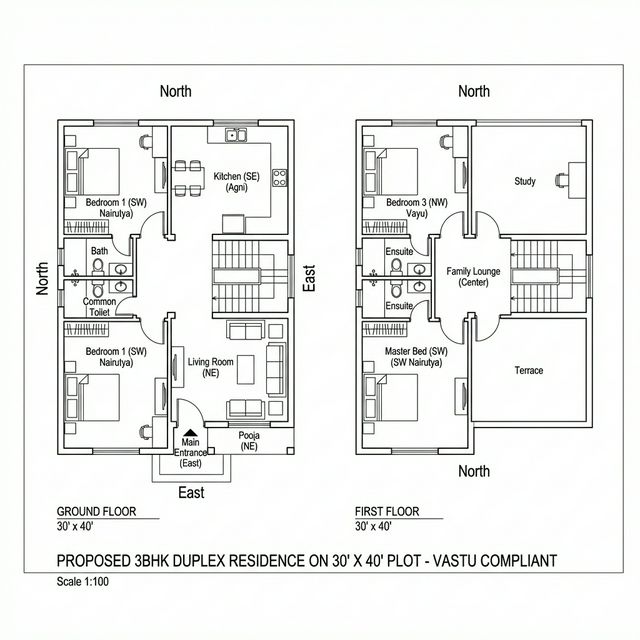

30x40 3BHK G+1 House Plan
The G+1 design is the most popular configuration on a 30x40 plot across Bangalore. By building two floors, you unlock approximately 2,100–2,200 sq ft of built-up area — more than double the ground-only option — for a fraction of the additional cost.
Ground Floor
- • Covered car parking (11×20 ft)
- • Entrance foyer
- • Living room (12×14 ft)
- • Dining area
- • Modular kitchen with utility
- • 1 bedroom with attached bathroom (for parents)
- • Staircase to upper floor
First Floor
- • Master bedroom (12×14 ft) with attached bathroom
- • 2 additional bedrooms (10×10 ft each)
- • Common bathroom
- • Sit-out or small terrace (north/east facing)
- • Wardrobe provision in all rooms
This is the standard "family home" configuration in Bangalore's outer ring road areas — practical, Vastu-friendly, and highly resaleable. See all G+1 house plans →
30x40 Duplex House Plan
A 30x40 duplex creates two fully independent residential units on one plot — the most tax-efficient way to generate rental income from your land while living on the same property. Each unit has its own entrance, kitchen, bedrooms, and bathrooms.
Ground Unit
- • Independent entrance from street
- • 2BHK: living, dining, kitchen
- • 2 attached bathrooms
- • Car parking
First Floor Unit
- • Separate external staircase
- • 2BHK: independent kitchen, living
- • 2 bathrooms
- • Balcony/sit-out
Monthly rental yields on a 30x40 G+1 duplex in Whitefield or Electronic City currently range from ₹18,000–₹28,000 per unit. Explore duplex house plans →
Section 03
Vastu Guidelines for Your 30x40 Site
A vastu-compliant 30x40 house plan is achievable for all four facing directions. The 30×40 proportion (ratio 3:4) is considered near-auspicious in Vastu Shastra as it closely approximates a square, allowing good natural light and ventilation from all four sides.
🧭 North-Facing
Place the main entrance in the northeast or north-centre. Master bedroom in the southwest. Kitchen in the southeast. Northeast corner: pooja room or underground sump. North-facing is the most auspicious direction per Vastu (Kuber's direction — wealth).
☀️ East-Facing
Entrance on the north half of the east wall. Master bedroom in the southwest. Kitchen in the southeast. Second most preferred orientation in Vastu — sunrise energy promotes good health and positivity.
🌅 South-Facing
Entrance must be in the 4th pada (position) of the south wall — not the centre. With correct placement, south-facing homes can be fully Vastu-compliant. The idea that south-facing is "bad" is a common myth.
🌇 West-Facing
Entrance in the 3rd or 4th pada of the west wall. Kitchen in the south or southeast. Master bedroom in the southwest. Leave north and east sides relatively open for fenestration and natural light.
| Room | Vastu-Ideal Direction | Reason |
|---|---|---|
| Main entrance | North, East, or Northeast | Positive energy entry |
| Master bedroom | Southwest | Stability and authority |
| Kitchen | Southeast | Agni (fire) direction |
| Pooja room | Northeast | Divine energy zone |
| Children's room | Northwest or West | Movement and growth |
| Bathrooms | South or West | Away from sacred zones |
| Living room | North or East | Social, welcoming energy |
| Staircase | South, West, or Southwest | Structural weight principle |
All PlanMyPlot designs are vastu-reviewed at no extra cost. Read the complete Vastu house plan guide →
Section 04
30x40 Construction Cost Estimate — Bangalore, 2026
Here is a realistic cost breakdown for designing and building a 30x40 home in Bangalore. Architectural drawings are the foundation — getting them right at the start saves ₹3L–₹8L in abortive construction costs from unclear or incomplete floor plans.
| Item | Cost Range |
|---|---|
| Architectural drawings (2D floor plan + 3D elevation) | Get Best Quote |
| Structural drawings (RCC design) | Get Best Quote |
| Working drawings for contractor | Get Best Quote |
| BBMP / BDA plan approval documentation | ₹25,000 – ₹60,000 |
| Civil construction (₹1,800–₹2,200/sq ft, G+1, ~2,100 sq ft) | ₹38L – ₹46L |
| Interior finishing (basic to mid-range) | ₹5L – ₹15L |
Total project cost (G+1, Bangalore, 2026): For a standard G+1 30x40 duplex in Bangalore (2,100 sq ft built-up), total cost from drawings to ready-to-move typically ranges from ₹48L to ₹65L depending on the finishing grade.
See our full pricing guide at PlanMyPlot Pricing →
Section 05
BBMP Rules for 30x40 Sites in Bangalore
Under BBMP (Bruhat Bengaluru Mahanagara Palike) residential bylaws for a 1,200 sq ft (30×40) site, the following norms apply to your house plan:
Front Setback
1.5 to 3 metres, depending on road width abutting the plot
Side Setbacks
1 to 1.5 metres on each side
Rear Setback
1 metre minimum
Maximum FAR
2.25 for standard residential — up to 2,700 sq ft total built-up (1,200 × 2.25)
Maximum Height
Ground + 2 floors (G+2) for most BDA layout plots
Mandatory Parking
Not compulsory for plots under 2,000 sq ft, but strongly recommended for resale
All PlanMyPlot drawings are prepared to BBMP submission standards. We also assist with BDA and BMRDA sites outside Bangalore's BBMP limits.
Section 06
How to Get Your 30x40 House Plan in 7 Days
Share Your Plot Details
Fill in the brief form with your plot dimensions (30x40), facing direction, number of floors, rooms required, and any special needs (rental unit, Vastu preferences, parking). Takes 5 minutes.
Architect Review Call
Within 24 hours, a registered PlanMyPlot architect calls you to discuss your brief, clarify any site constraints, and understand your budget and timeline.
Concept Layout in 3–4 Days
We deliver an initial concept floor plan for your review. This includes room placement, traffic flow, parking, and staircase position. You provide feedback via call or WhatsApp.

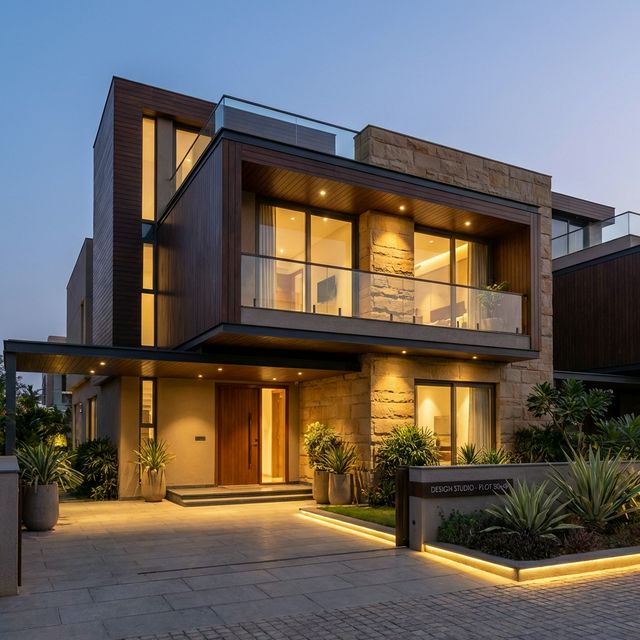

3D Elevation Design
After your approval on the 2D layout, we generate the 3D elevation — front facade, material palette, and window design — typically within 2 more working days.
Final Delivery
The complete package (2D floor plan, site plan, 3D elevation) is delivered as a PDF and DWG set, ready for your contractor and for BBMP/BDA plan approval submission.
Design Tips from
Professional Architects
Use a single-flight staircase instead of a dog-legged one — it saves 35–50 sq ft of carpet area on a 1,200 sq ft plot.
Avoid internal walls where possible — use flooring or lighting to separate living and dining zones and gain visual space.
Integrate an Open-to-Sky (OTS) duct in the north wall to pull natural light into the deeper zones of the ground floor.
Opt for floor-to-ceiling windows on north/east walls to create outdoor-indoor connection and visual depth.
Place the underground sump strictly in the northeast corner to comply with Vastu and minimise plumbing pipe runs.
For G+1 rental duplexes, design the external staircase as an architectural feature — not a utilitarian afterthought.
